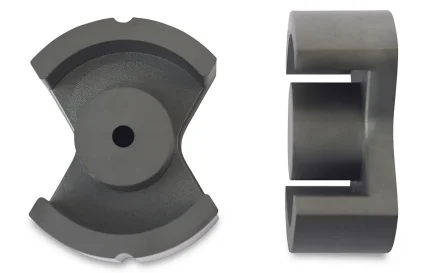

PM

Effective Parameters AL (nH)+30%

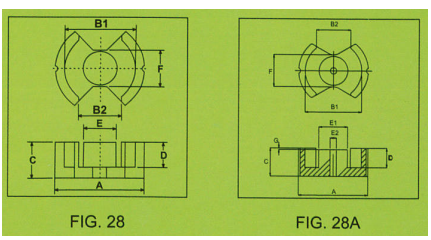

Fig A B1 B2 C D E1 E2 F Le(mm) Ae(mm2) -20%
PM 8770 28 85.5 ±1.5 68.15 ±1.05 41.0 ±1.5 34.8 ±0.25 24.4 ±0.4 31.2 ±0.5 8.65±0.25 35.0 ±1.0 146 910 12500 pdf
PM7459 28 74.3-3.0 57.5min. 34.0min 29.5±0.4 20.5±0.4 29.0±1.0 5.4±0.3 32.4max 128 790 10000 pdf
PM6249 28A 61.0 ±1.0 49.5 ±0.75 29.0 min 24.4 ±0.15 16.9 ±0.2 25.1 ±0.4 5.5 ±0.1 28.5 max 109 570 9200 pdf
PM5039 28A 50.0-1.7 39.65±0.65 23.4 min 19.4±0.15 13.4±0.2 19.7±0.3 5.5±0.2 23.0 max 84 370 7200 pdf
PM11493 pdf
