EVD, EFC CORES

Fig A B C D E F G Le(mm) Ae(mm2) CF196 CF139 CF130
EVD2513 18 25.0+0.8-0.7 19.2±0.4 12.6±0.25 9.55±0.25 8.8±0.25 12.7-0.5 8.3±0.3 60 73 2400 2500 3700 pdf
EVD1509 19 14.9±0.6 11.1±0.3 8.85±0.15 6.2+0.2 5.6±0.2 6.8±0.2 4.6±0.2 38.7 27.7 1200 1300 – pdf
EFC2508 20 25.1±0.4 21.0 min. 12.5±0.2 9.0±0.2 11.5±0.2 8.0±0.2 3.95±0.15 59.2 46.4 1700 1750 – –

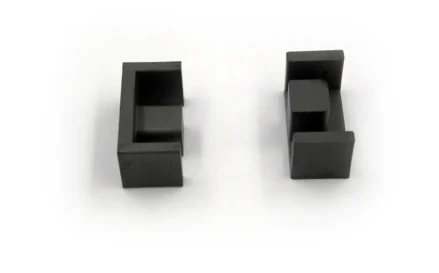

EI CORES

Fig A B C D E F G Le(mm) Ae(mm2) CF196 CF139 CF130 CF195
E14012 21 40.0±0.5 27.2±1.0| 27.2+0.5 20.0+0.5 12.0-0.7 12.0-0.7 7.5±0.3 76.8 148 3800 3950 5100 5100 pdf
EI3512T 21 35.0+0.8-0.5 25.0+0.8 23.8+0.7 18.0+0.6 10.3-0.6 11.7±0.3 5.5±0.2 67.3 120 3500 3600 – – pdf
E13313 21 33.0±0.5 23.2+0.8 23.3±0.3 19.0±0.35 9.7±0.3 12.7±0.3 5.0±0.2 66.9 118.1 3500 3600 4600 – pdf
E13011 21 30.0+0.7-0.2 20.0+0.7 21.0+0.6 16.0+0.6 11.0-0.7 11.0-0.7 5.5±0.2 58.5 110.4 3700 3800 4800 – –
E12811 21 28.0±0.4 18.6+0.8 17.3±0.3 12.8±0.25 7.5-0.8 11.0-0.6 3.5±0.2 49.5 84.4 3400 3600 4600 6600 pdf
